Surface Mount Fume, Fire and High Bilge Water Alarm MGD-10XL
$390.00
Need Replacement Components or Additional Coverage?
$120.00

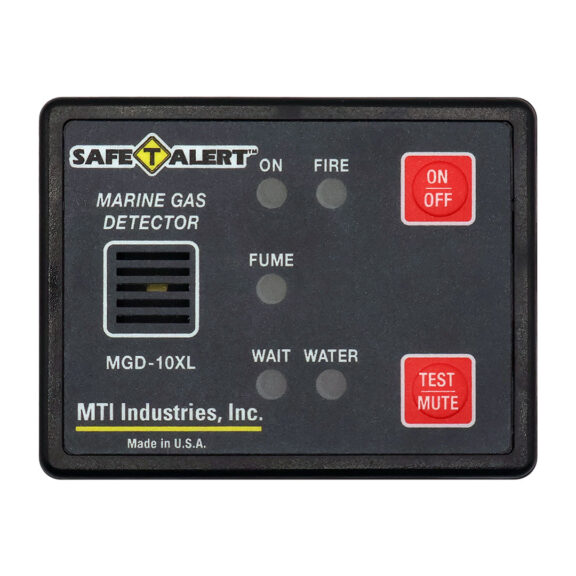

This does not come with any external sensors or cables; it is a replacement panel only.
$186.00
This does not come with any external sensors. It includes a 20' cable and Y connector. An additional panel is a common addition for a flybridge.
$146.00

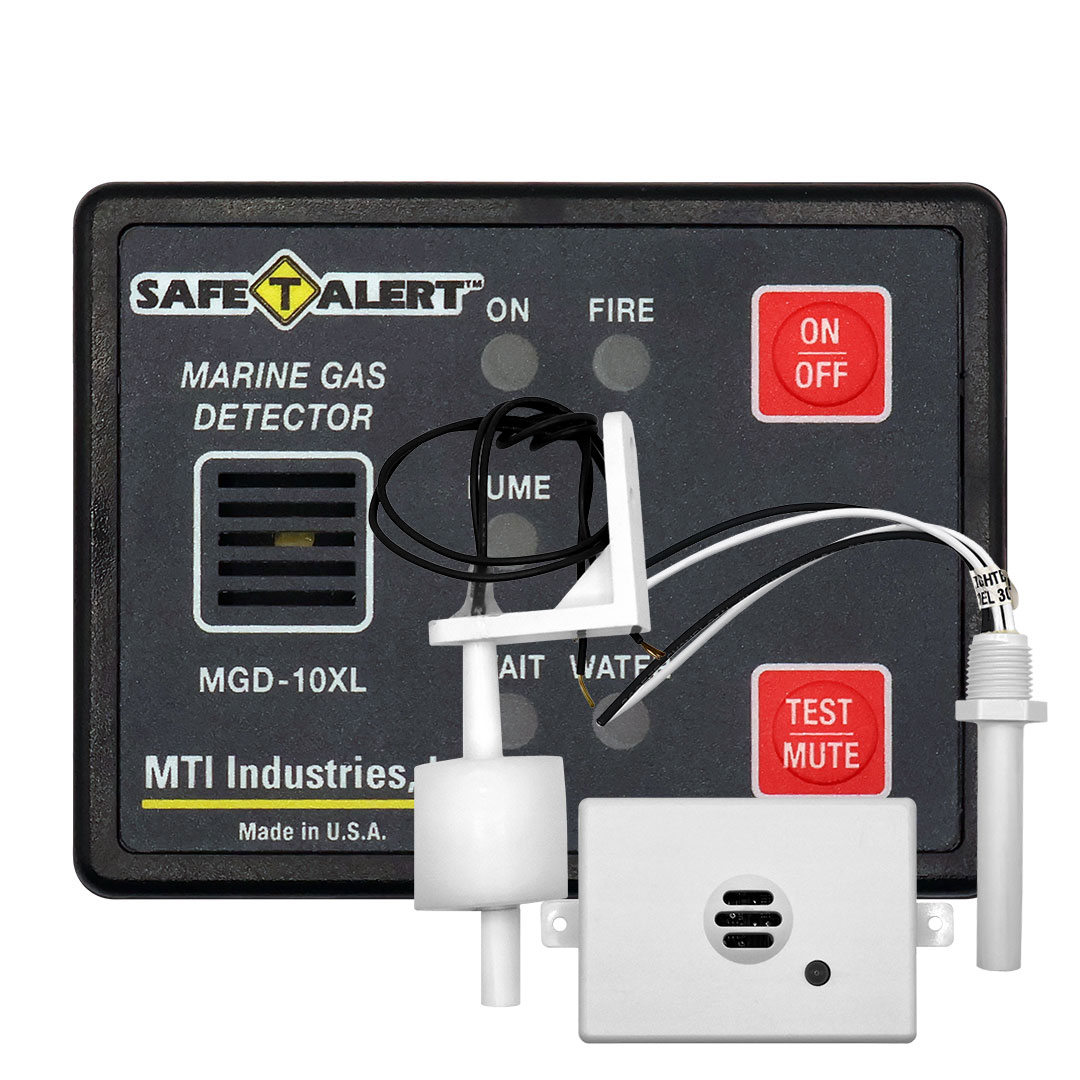

This comes with an additional sensor block that is programmed to beep at a different cadence, 20' cable and Y connector.
$120.00
The 302 Series features conventional, probe-style thermal sensors engineered for specialized fire alarm integration. Operating on advanced rate-anticipation (rate compensation) principles, the device acts instantly once ambient conditions cross its target threshold. During sudden, high-speed temperature spikes, its intelligent mechanical design enables it to trigger one to three degrees ahead of its setting. This feature fully offsets the thermal lag inherent in standard fixed-temperature models while suppressing false alarms caused by minor, everyday temperature fluctuations.
$20.00

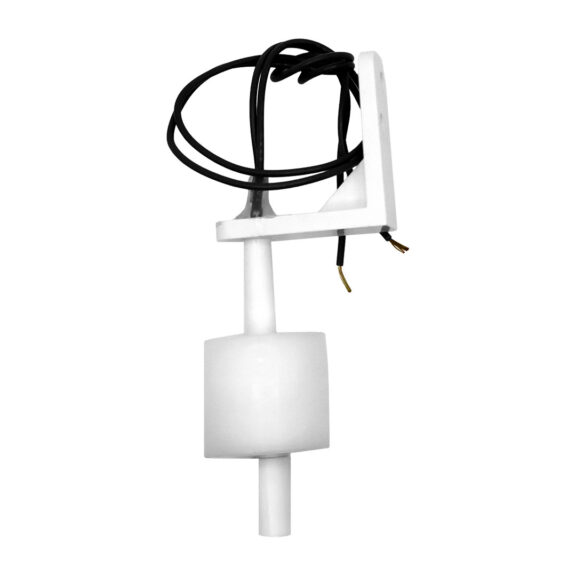

This specific component is used in safety and monitoring systems—such as high-bilge-water alarms or liquid-level detectors—for RVs, marine applications, and specialized household equipment. It features a white vertical stem, a magnetic cylindrical float that travels along the shaft to actuate an internal reed switch, and an L-shaped mounting bracket for installation
Features
- Smart Fume Sensor. Detects the build up of explosive gases.
- Thermal Heat Sensor. Alarms when fire conditions exist.
- High Bilge Water Sensor. Alerts you to bilge flooding and pump problems.
- Sight and Sound Alarm Indicator. Dual signaling sounds an alarm / activates warning light.
- On/Off/Test. For one touch analysis of detector performance.
- Money Saving. Qualify for marine insurance discounts.
- Marine Proven. Exclusively designed for the harsh marine environment.
Operating Specifications
- Power 12 vDC, operational range +/- 15%
- 200 milliamp (.2 amp.) current draw
- Alarm Trigger: 20% or less of the lower explosive limit of gasoline, propane and CNG
- Fumes Detected: Gasoline, hydrogen from batteries, propane, alcohol, acetone, CNG and other explosive vapors
- Fire Alarm Trigger: 180 degree Thermal Switch
- Water sensor triggers during high bilge water conditions
- Size: 3-1/4’W x 2-3/4’H x 3/4’D
